Zipbolt 11.700 Mini Mitre Connector — Connects Furniture Components, Mitered Staircase Handrails, and More, Residential and Commercial Installation, New Construction and Remodels

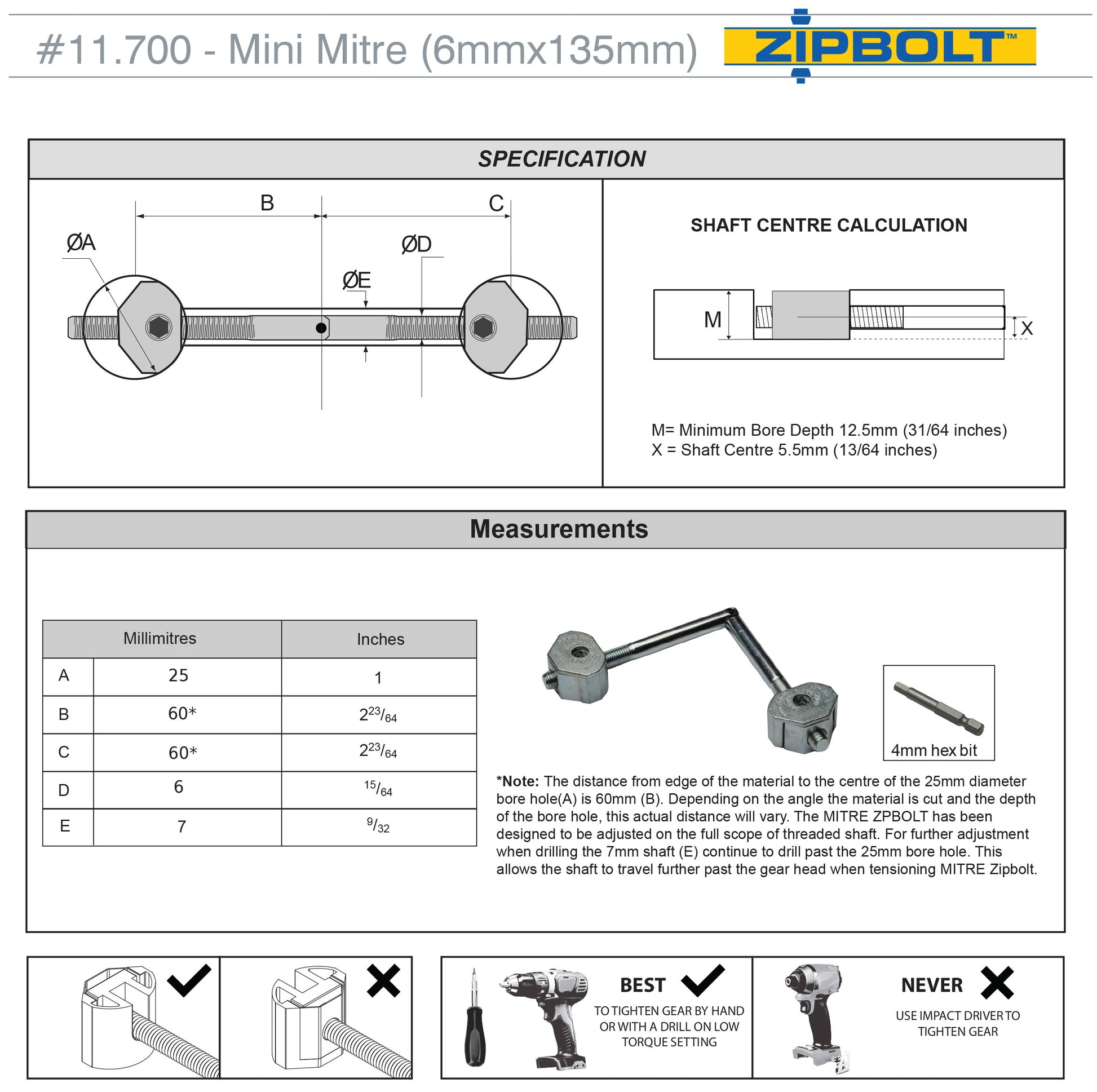

Download/Print Spec Sheet

Features:

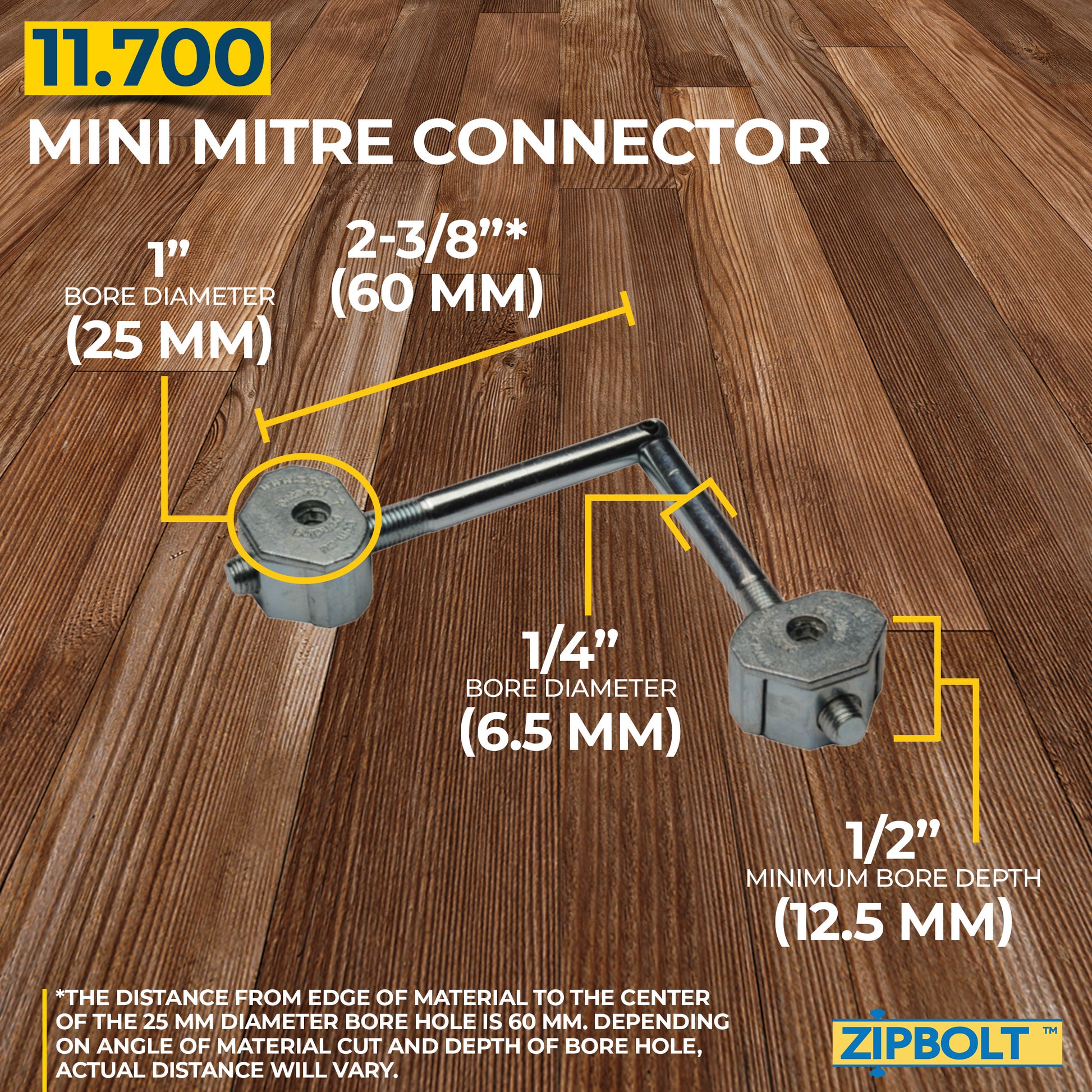

• ULTRA SLIM PROFILE – The ideal fastener for thin profile woodworking applications, the 11.700 Mini Mitre connector only needs approximately 1/2” (12.5mm) bore depth for installation. Easily connect mitered wood joints with one hand, using the included bit.

• EASILY CONNECT MITERED HANDRAILS AND FURNITURE COMPONENTS – Ideal for mitered stairway and furniture joints, this miter connector kit adjusts to any angle between 90 and 180 degrees, horizontally or vertically, to perfectly align two mitered sections.

• FAST INSTALLATION – Quickly connect mitered sections. Drill, then install the connector shaft. Place the gear housing inside the hole and tighten with the included bit using a screwdriver or cordless drill. NOTE: Impact drivers should not be used when tightening the gear housing.

• DURABLE CONSTRUCTION – Made with quality steel for maximum durability, these Zipbolts were created by professionals for residential and commercial use. They provide a solid and stable connection without the frustration of traditional methods.

• INNOVATIVE PATENTED DESIGN – Zipbolt offers a distinctive patented gear drive that outperforms all others in terms of functionality. The innovative UT gear-driven mechanism eliminates the issues associated with conventional techniques of joining staircase components. The railbolt housing's distinctive open channel allows the housing to be dropped directly on the shaft, eliminating the need for cumbersome nuts and washers.

Details:

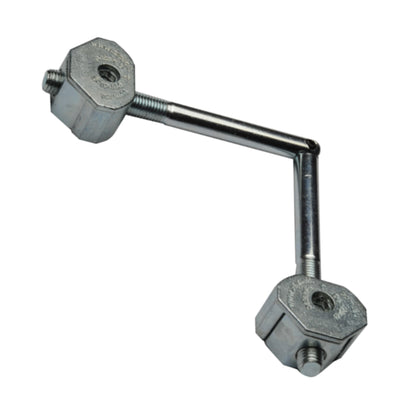

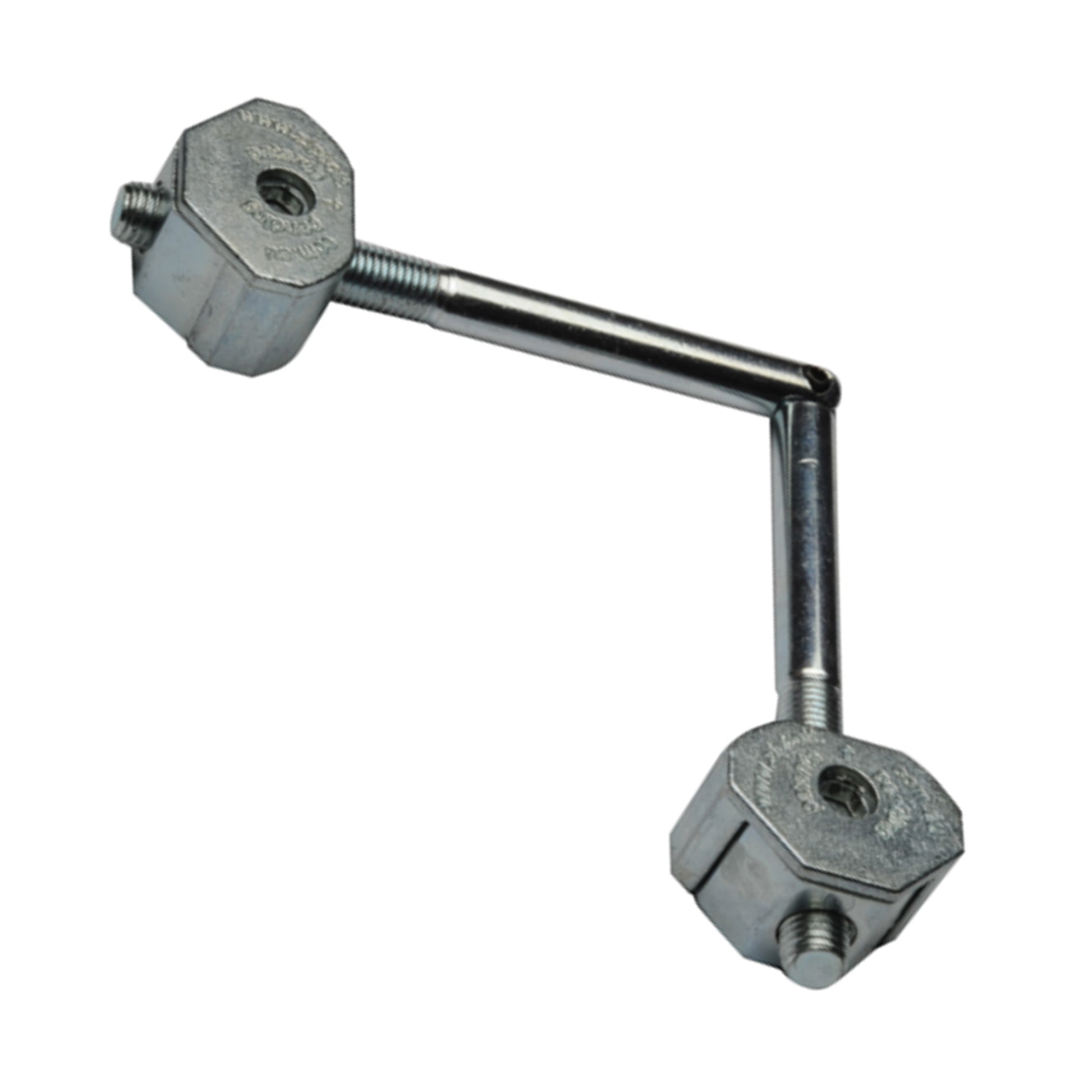

IMPORTANT: DO NOT USE IMPACT DRIVER TO INSTALL THIS PRODUCT. Zipbolt UT mitre connectors are the ideal solution for angled handrail joints and are suitable for a variety of applications ranging from furniture construction to staircase designs. The UT 11.700 Mini Mitre is truly flexible by allowing for any angle between 90 and 180 degrees but with the advantage of allowing the shaft to pass through the back of the housing, providing travel and permitting the joint to be recut if necessary. The Mini Mitre features two die-cast housings and allows for user adjustment to create a perfect joint. Each housing has an “open channel” design, which allows the user to simply place the housing over the shaft for easy thread engagement and positioning at the correct height. This multipack includes a bit with a quick release shank.
