13.960 Angled Slipfix Railbolt Handrail to Newel Post Connector — Connect Angled Handrail to Staircase at Upper Connection

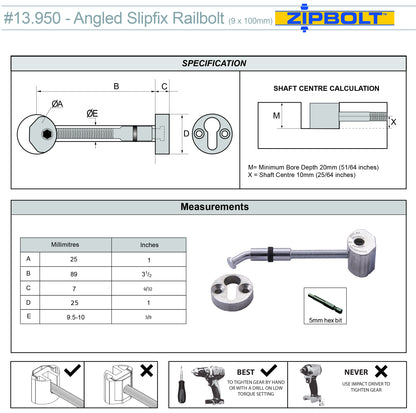

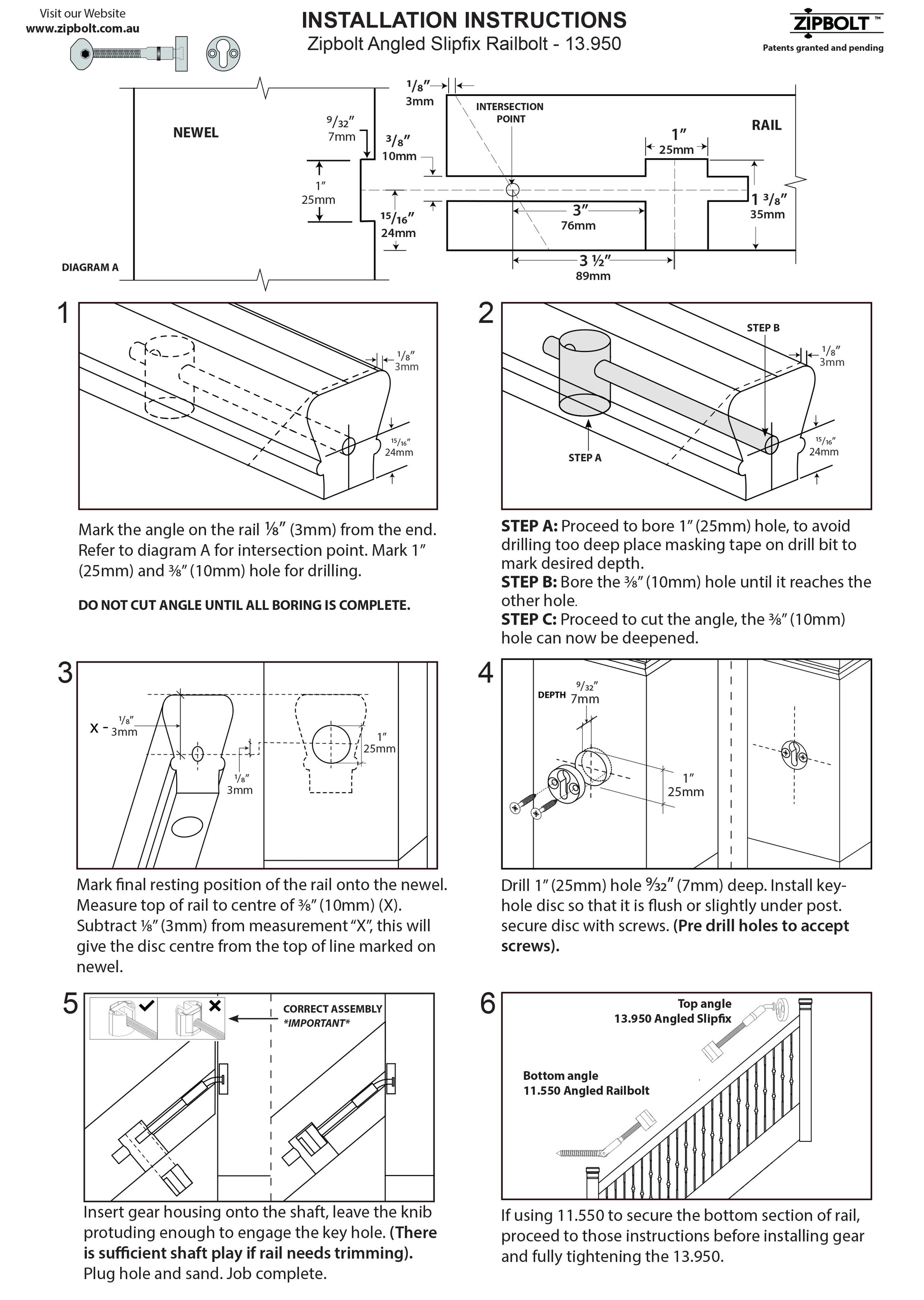

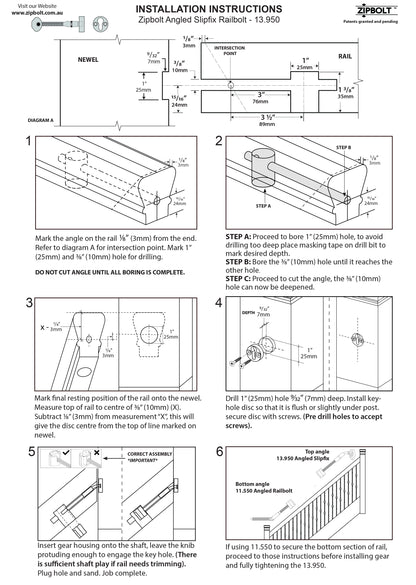

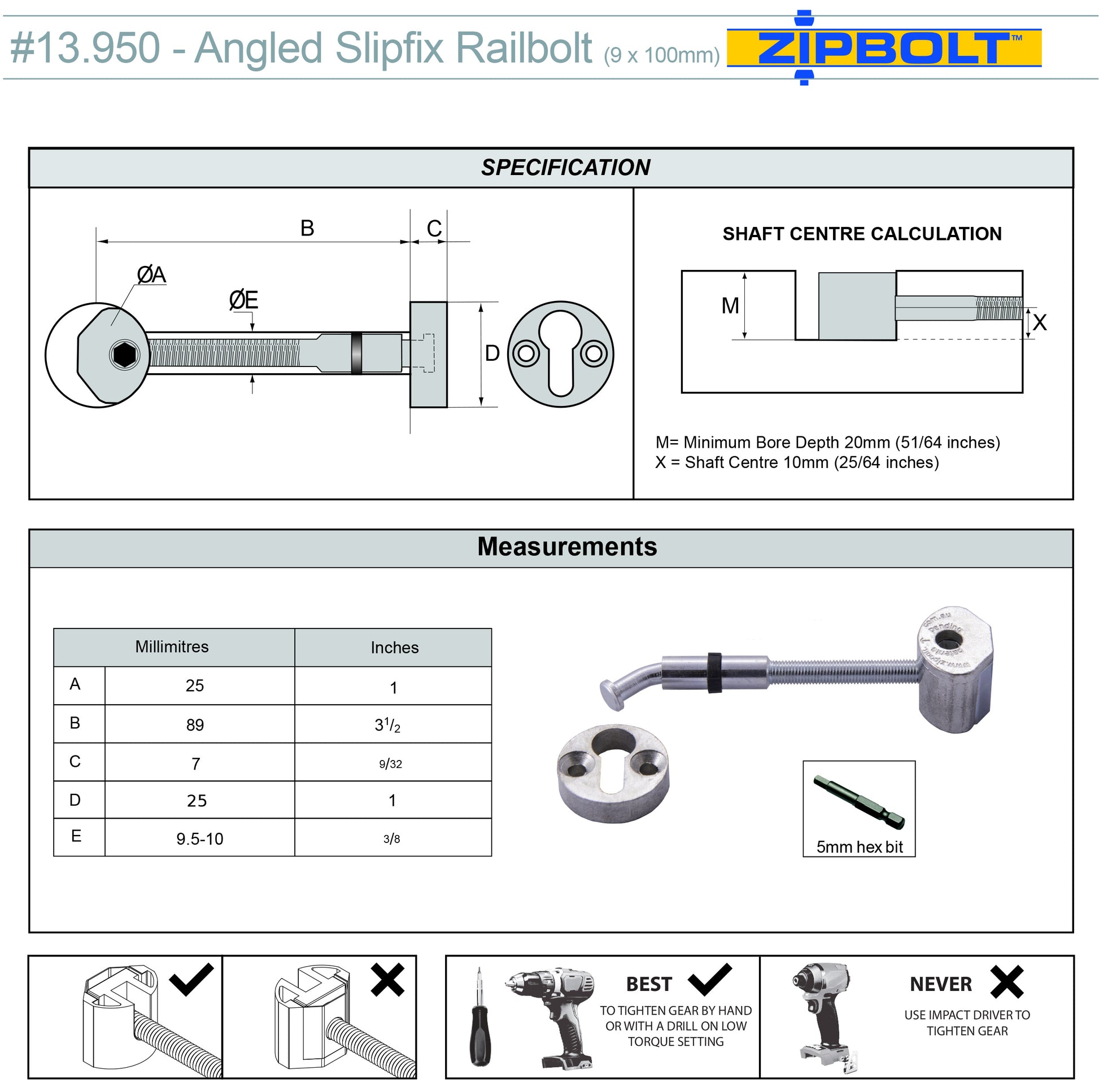

Download/Print Instructions and Spec Sheet

Features:

• EASILY CONNECT ANGLED HANDRAILS TO NEWEL POSTS – Perfect for stairway post joints, this angled slipfix railbolt kit adjusts to the ideal angle to perfectly align the upper connection of an angled handrail to a newel post.
• FAST INSTALLATION – Attaching handrails to fittings is no longer a tedious, time consuming process. Assemble the rail bolt shaft and gear housing in the rail, install the keyhole disc, and tighten the gear with the included T30 Torx driver using a screwdriver or cordless drill. NOTE: Impact drivers should not be used when tightening the gear housing.

• DURABLE CONSTRUCTION – Created by professionals for residential and commercial use, these Zipbolts are made with quality steel for maximum durability and provide a solid and stable connection without the frustration of traditional methods.

• INNOVATIVE PATENTED DESIGN – Zipbolt offers a distinctive patented gear drive that outperforms all others in terms of functionality. The innovative UT gear-driven mechanism eliminates the issues associated with conventional techniques of joining stair newels to rails. The railbolt housing's distinctive open channel allows the housing to be dropped directly on the shaft, eliminating the need for nuts and washers.

Details:

The Zipbolt 13.960 Angled Slipfix Railbolt is the companion to the Zipbolt 11.560 Angled Railbolt, designed specifically for securing a handrail to a post at an acute angle (such as an upstairs joint).

The angled shaft is pre-installed into the rail with a slight protrusion, allowing it to slot directly into the fitted keyhole disc in the post. Once engaged, the Zipbolt’s gear-driven system tightens the joint using the included T30 Torx driver, creating a precise and durable connection.

IMPORTANT: DO NOT USE AN IMPACT DRIVER TO INSTALL THIS PRODUCT.
