11.560 Angled Handrail to Newel Post Connector — Angled Railbolt for Lower Staircase Connection

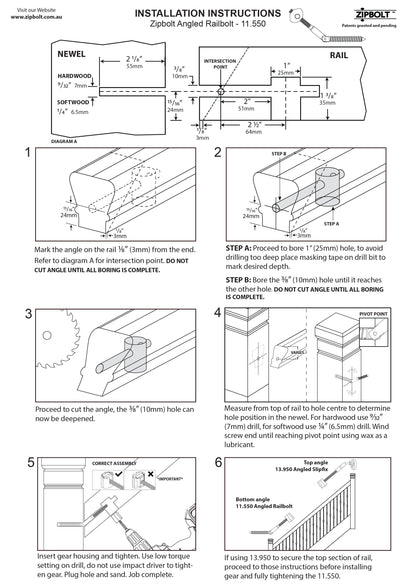

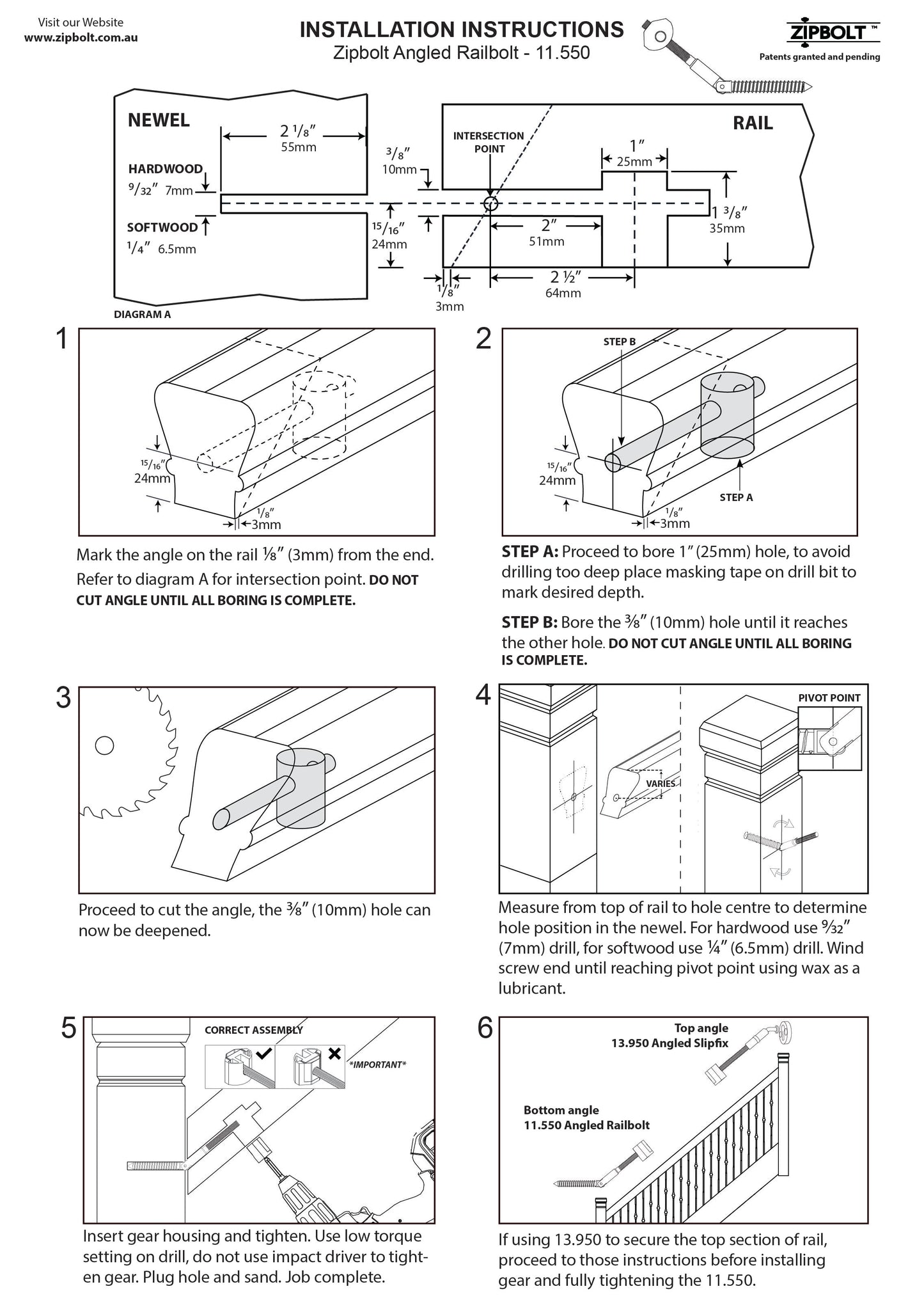

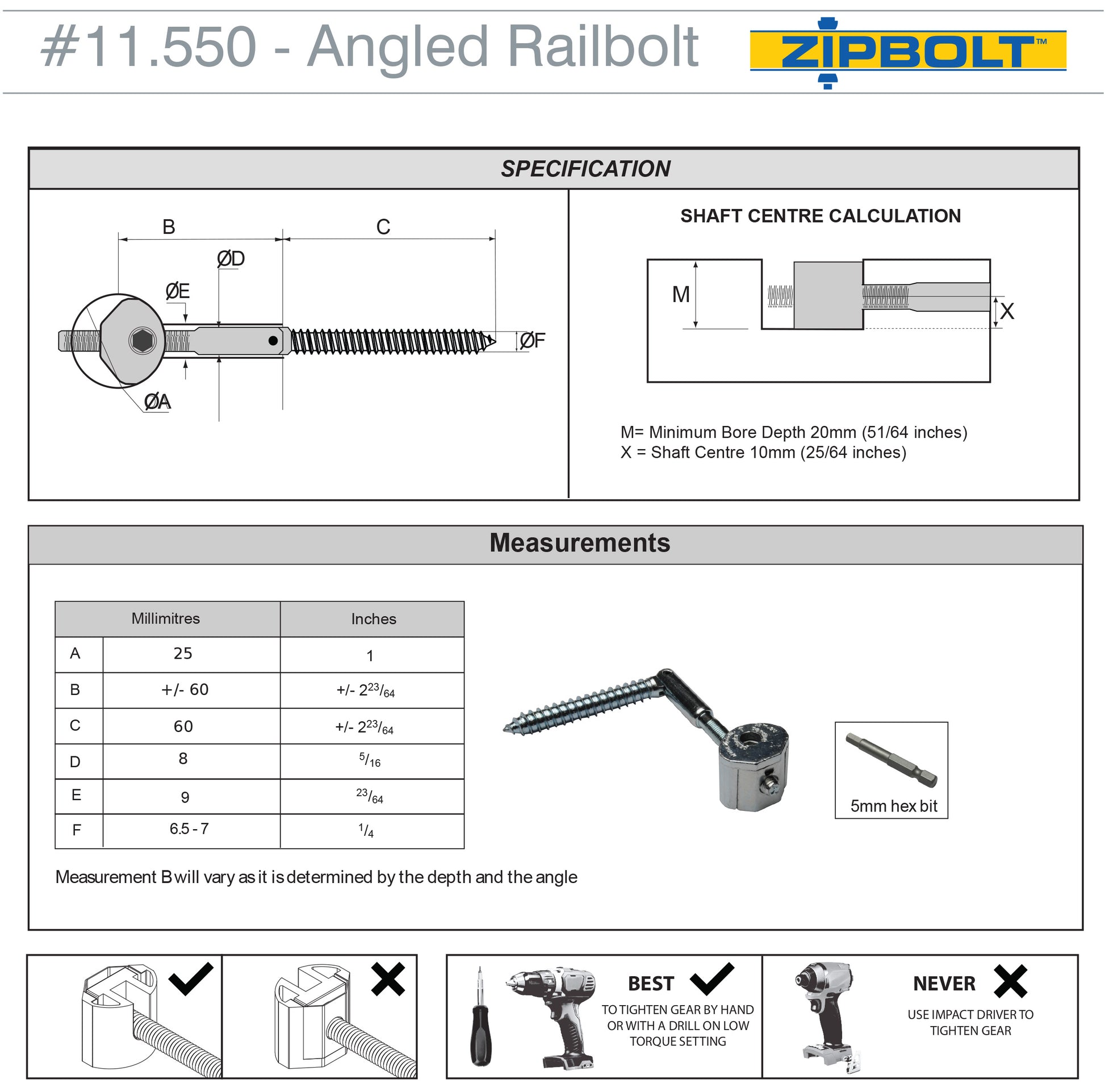

Download/Print Instructions and Spec Sheet

Features:

• EASILY CONNECT ANGLED HANDRAILS TO NEWEL POSTS – Perfect for stairway post joints, this angled railbolt kit adjusts to the ideal angle to perfectly align the lower connection of an angled handrail to a newel post.
• FAST INSTALLATION – Attaching handrails to fittings is no longer a tedious, time consuming process. Wax and screw the railbolt into the reamed newel post, place the housing gear inside the railing, and tighten the gear with the included T30 Torx driver using a screwdriver or cordless drill. NOTE: Impact drivers should not be used when tightening the gear housing.

• DURABLE CONSTRUCTION – Made with quality steel for maximum durability, these Zipbolts incorporate a double knuckle joint with a hardened pin. Created by professionals for residential and commercial use, they provide a solid and stable connection without the frustration of traditional methods.
• INNOVATIVE PATENTED DESIGN – Zipbolt offers a distinctive patented gear drive that outperforms all others in terms of functionality. The innovative UT gear-driven mechanism eliminates the issues associated with conventional techniques of joining stair newels to rails. The railbolt housing's distinctive open channel allows the housing to be dropped directly on the shaft, eliminating the need for nuts and washers.

Details:

The Zipbolt UT Angled Railbolt 11.560 was designed for the stair industry to solve the challenge of securely attaching an angled handrail to a newel post using a hidden fastener. The connector features UT gear-driven technology, allowing easy tightening at a right angle, deep within the handrail, using a Torx driver in a drill or screwdriver.

The pivoting 8mm shaft has a coach bolt (wood thread) that can be hand-wound directly into the post. Once the handrail is bored and the angle cut, it attaches quickly and securely. The pivoting action adjusts to any angle – open or closed – creating a strong joint without the need for a long, visible screw through the face of the newel post or unsightly filled nail holes.

IMPORTANT: DO NOT USE AN IMPACT DRIVER TO INSTALL THIS PRODUCT.
